Brand: In-Win
Product Code: 1391
Availability: In Stock
Status: Brand New
Warranty: Three Years RTB Warranty
Manufacturer Url: https://www.in-win.com/en/gaming-power-supply/a55#product_spec
Product Code: 1391
Availability: In Stock
Status: Brand New
Warranty: Three Years RTB Warranty
Manufacturer Url: https://www.in-win.com/en/gaming-power-supply/a55#product_spec
Price: $97.75 gst Inclusive $85.00 gst Exclusive

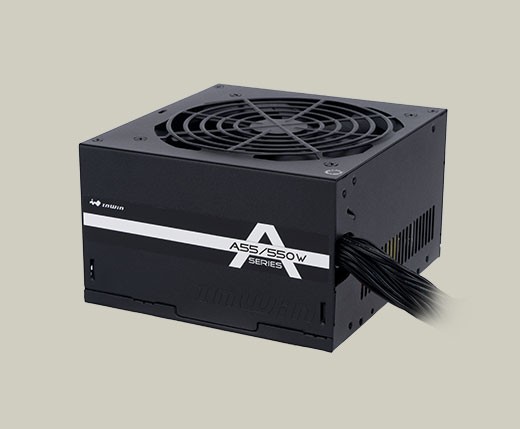

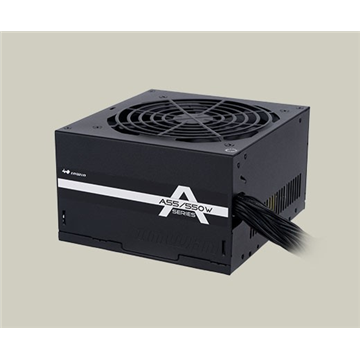

In Win Part No. IW-A550
Quality Power, Great Performance, Low Noise
The InWin A Series is a power supply with high compatibility and reliability, it meets the 80 PLUS® certification for 230V. Equipped with powerful single +12V rail design and multi-protection safeguards. The A Series provides great performance at a good price.
Specifications
| Model | A55 | |||
|---|---|---|---|---|
| Part Numbers | IW-A550 | |||
| Total Power | 550W | |||
| Material | SECC | |||
| Type | ATX12V V2.4 | |||
| PFC | Active PFC | |||
| Efficiency | 80 PLUS®230V EU Standard (Up to 85%) | |||
| MTBF (Hours) | >100,000 hrs. | |||
| AC Input | 200 - 240Vac., 50-60Hz | |||
| Fan | 120mm Silent Fan | |||
| Operating Temperature Range (°C) | 0~40 °C | |||
| Full Protection | OVP / UVP / SCP / OPP | |||
| Safety Certifications | TUV / CE / RCM | |||
| Dimensions (L x W x H) | 140 x 150 x 86mm | |||
| Package Dimensions(L x W x H) | 240 x 185 x 98mm | |||
| Net Weight | 1.57 kg | |||
| Gross Weight | 1.93 kg | |||
| Warranty | 3 Years | |||

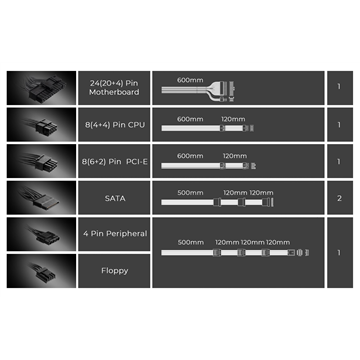

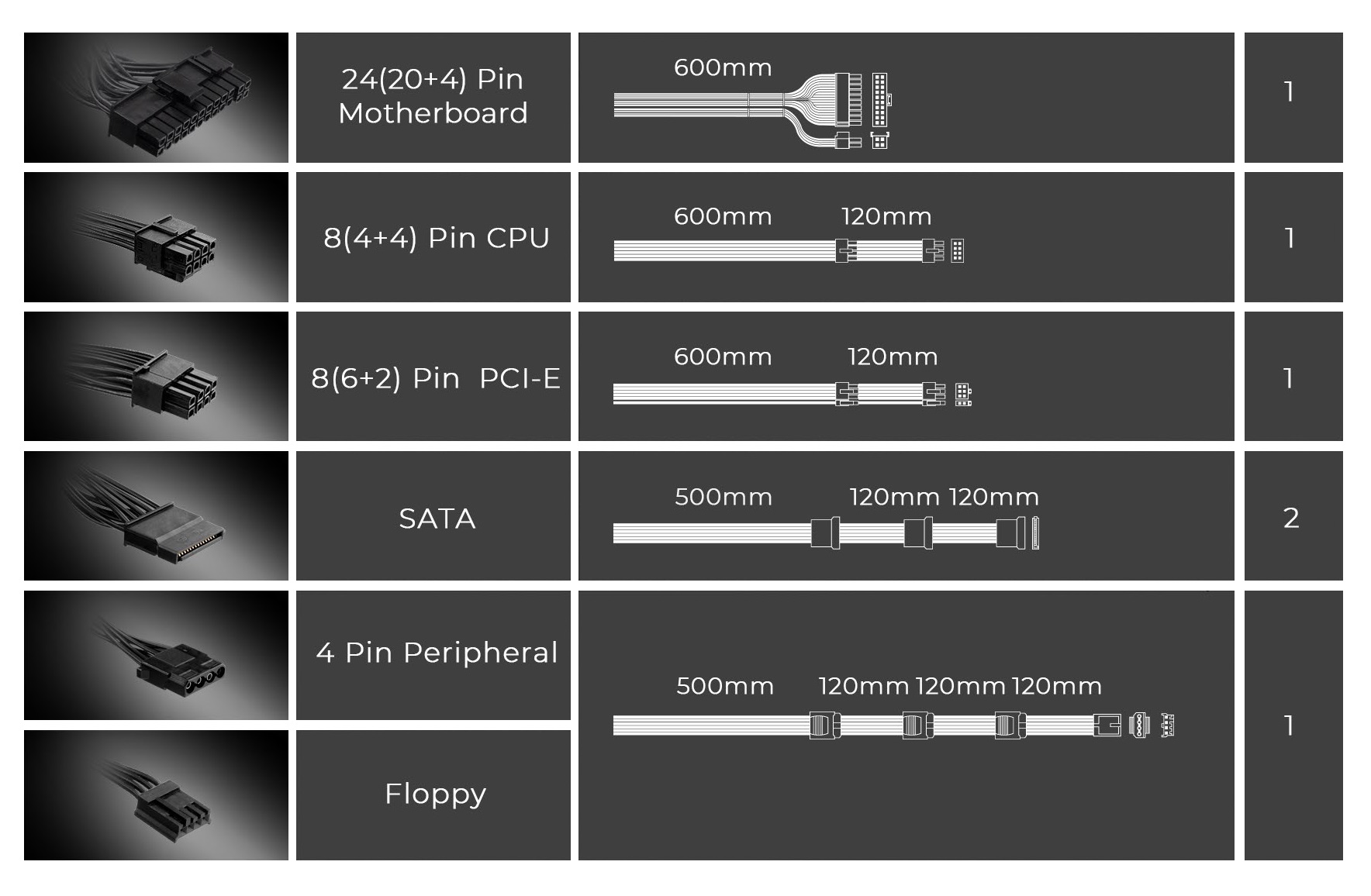

| Connectors | 20+4 Pin Motherboard | 1 | ||
| 8 (4+4) Pin CPU | 2 | |||
| 8 (6+2) Pin PCI-E |
2 | |||
| 4 Pin Peripheral | 3 | |||
| SATA | 6 | |||
| Floppy | 1 | |||
| Max. Output Current | 42A | 20A | 20A | 0.3A | 3A | 550W |
|
Max. Combined Power |
504W |
110W |
3.6W |
15W |
||
Three years Return To Base Warranty
| Max. Output Current | 42A | 20A | 20A | 0.3A | 3A | 550W |
|
Max. Combined Power |
504W |
110W |
3.6W |
15W |
||
