Product Code: 101096
Availability: In Stock
Status: Brand New
Warranty: One Year RTB Warranty
Manufacturer Url: https://www.deepcool.com/products/Cases/CH510-MESH-DIGITAL-Mid-Tower-ATX-Case/2022/16213.shtml
Price: $113.85 gst Inclusive $99.00 gst Exclusive
H510 MESH DIGITAL ATX Mid Tower Tempered Glass with Front Digital Display, supports GPU Upto 380mm, 360mm Coller Supported

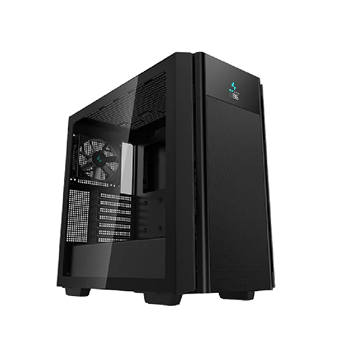

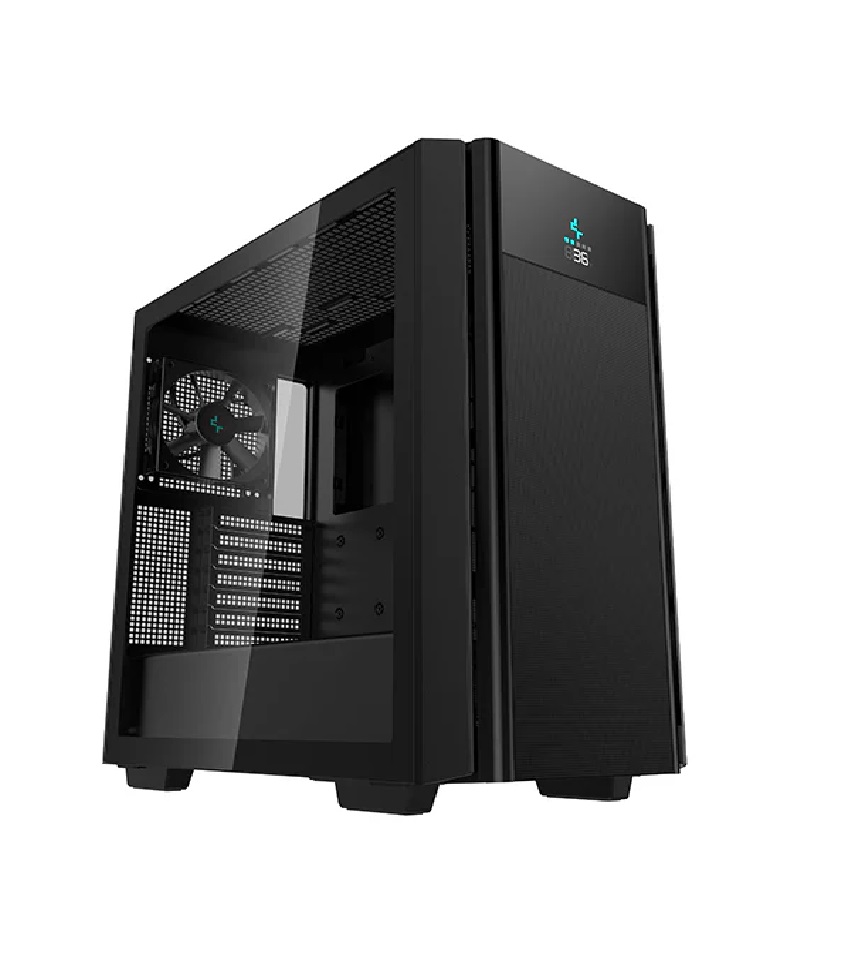

CH510 MESH DIGITAL
The DeepCool CH510 MESH DIGITAL is a high airflow mid-tower ATX case with great flexibility and wide component compatibility for any system build. Featuring a display screen that is programmable to monitor internal system temperatures for critical information up front.
Features
HIGH-AIRFLOW PANEL
The CH510 MESH DIGITAL is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer. The large metal mesh front panel allows vast amounts of airflow for optimal system cooling.
BUILT-IN DISPLAY
Monitor system information stats for critical CPU or GPU temperatures with a digital display built into the front panel for info access up close.
MORE CAPACITY, MORE POWER
Big power needs big cooling and the CH510 MESH DIGITAL provides ample amount of mounting locations to install plentiful cooling. Install large radiators up to 360mm either in front or on top, or fit up to 9x 120mm or 5x 140mm cooling fans for extreme airflow throughout.
MAGNETIC TEMPERED GLASS WINDOW
The clean tempered glass side panel offfers an immaculate view inside the chassis while being fastened with a magnetic mount for simplicity and ease. Additionally the glass window can be properly locked and secured with a dedicated screw mount for extra added safety.
WIDE AND SPACIOUS INTERIOR
Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.
Specifications
c
Technical Spec
Product Dimensions | 455×230×470mm(L×W×H) |
Net Weight | 7.5Kg |
Materials | ABS+SPCC+Tempered Glass |
Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX |
Front I/O Ports | USB3.0×1、Type-C×1、Audio×1 |
3.5" Drive Bays | 2 |
2.5" Drive Bays | 2+1 |
Expansion Slots | 7 Slots |
Pre-Installed Fans | Rear: 1×120mm |
Fan Support | Front: 3×120 / 2×140mm Top: 3×120 / 2×140mm Rear: 1×120 / 1×140mm PSU Shrouded: 2×120mm |
Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280/360mm Rear: 120/140mm |
CPU Cooler Height Limit | 175mm |
GPU Length Limit | 380mm |
Power Supply Type | ATX PS2 (maximum length: 170mm) |
EAN Code | 6933412775072 |
PN Code | R-CH510-BKNSE1-G-1 |
Product Dimension
