MPN: BX8071512400

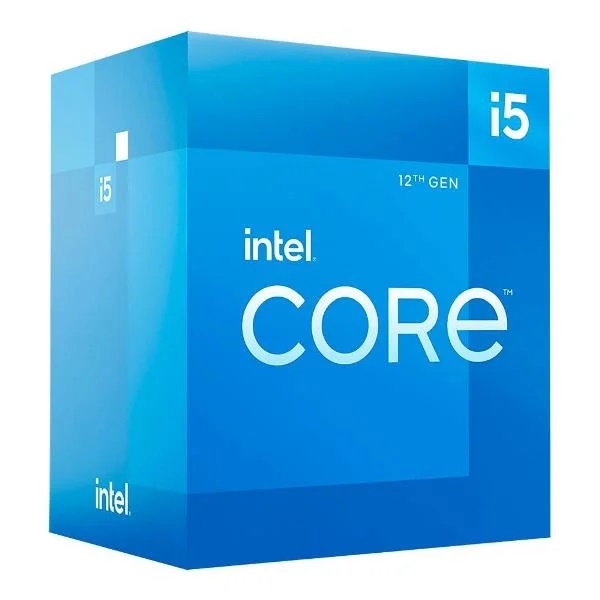

Core i5-12400 6 Cores 4.40GHz FCLGA1700 Processor

Intel designs advanced, high-performance processors for every usage, including enterprise-scale servers, IoT devices, laptops, desktops, workstations, and mobile devices. To find information, specifications, downloads and support for each processor, start by selecting a Processor family.

Specifications:

Essentials:

• Product Collection: 12th Generation Intel Core i5 Processors

• Code Name: Products formerly Alder Lake

• Vertical Segment: Desktop

• Processor Number: i5-12400

• Lithography: Intel 7

• Use Conditions: PC/Client/Tablet



CPU Specifications:

• Total Cores: 6

• # of Performance-cores: 6

• # of Efficient-cores: 0

• Total Threads: 12

• Max Turbo Frequency: 4.40 GHz

• Performance-core Max Turbo Frequency: 4.40 GHz

• Performance-core Base Frequency: 2.50 GHz

• Cache: 18 MB Intel Smart Cache

• Total L2 Cache: 7.5 MB

• Processor Base Power: 65 W

• Maximum Turbo Power: 117 W



Memory Specifications:

• Max Memory Size (dependent on memory type): 128 GB

• Memory Types: Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s

• Max # of Memory Channels: 2

• Max Memory Bandwidth: 76.8 GB/s



Processor Graphics:

• Processor Graphics: Intel UHD Graphics 730

• Graphics Base Frequency: 300 MHz

• Graphics Max Dynamic Frequency: 1.45 GHz

• Graphics Output: eDP 1.4b | DP 1.4a | HDMI 2.1

• Execution Units: 24

• Max Resolution (HDMI): 4096 x 2160 @ 60Hz

• Max Resolution (DP): 7680 x 4320 @ 60Hz

• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz

• DirectX Support: 12

• OpenGL Support: 4.5

• Multi-Format Codec Engines: 1

• Intel Quick Sync Video: Yes

• Intel Clear Video HD Technology: Yes

• # of Displays Supported: 4

• Device ID: 0x4692 / 0x4682

• OpenCL Support: 2.1



Expansion Options:

• Direct Media Interface (DMI) Revision: 4

• Max # of DMI Lanes: 8

• Scalability: 1S Only

• PCI Express Revision: 5.0 and 4.0

• PCI Express Configurations: Up to 1x16+4 | 2x8+4

• Max # of PCI Express Lanes: 20



Package Specifications:

• Sockets Supported: FCLGA1700

• Max CPU Configuration: 1

• Thermal Solution Specification: PCG 2020C

• TJUNCTION: 100°C

• Package Size: 45.0 mm x 37.5 mm



Advanced Technologies:

• Intel Gaussian & Neural Accelerator: 3

• Intel Thread Director: No

• Intel Deep Learning Boost (Intel DL Boost): Yes

• Intel Optane Memory Supported: Yes

• Intel Speed Shift Technology: Yes

• Intel Turbo Boost Max Technology 3.0: No

• Intel Turbo Boost Technology: 2

• Intel Hyper-Threading Technology: Yes

• Intel Virtualization Technology (VT-x): Yes

• Intel Virtualization Technology for Directed I/O (VT-d): Yes

• Intel VT-x with Extended Page Tables (EPT): Yes

• Intel 64: Yes

• Instruction Set: 64-bit

• Instruction Set Extensions: Intel SSE4.1 | Intel SSE4.2 | Intel AVX2

• Idle States: Yes

• Enhanced Intel SpeedStep Technology: Yes

• Thermal Monitoring Technologies: Yes

• Intel Volume Management Device (VMD): Yes



Security & Reliability:

• Intel Threat Detection Technology (TDT): Yes

• Intel Standard Manageability (ISM): Yes

• Intel AES New Instructions: Yes

• Secure Key: Yes

• Intel OS Guard: Yes

• Execute Disable Bit: Yes

• Intel Boot Guard: Yes

• Mode-based Execute Control (MBEC): Yes

• Intel Control-Flow Enforcement Technology: Yes
