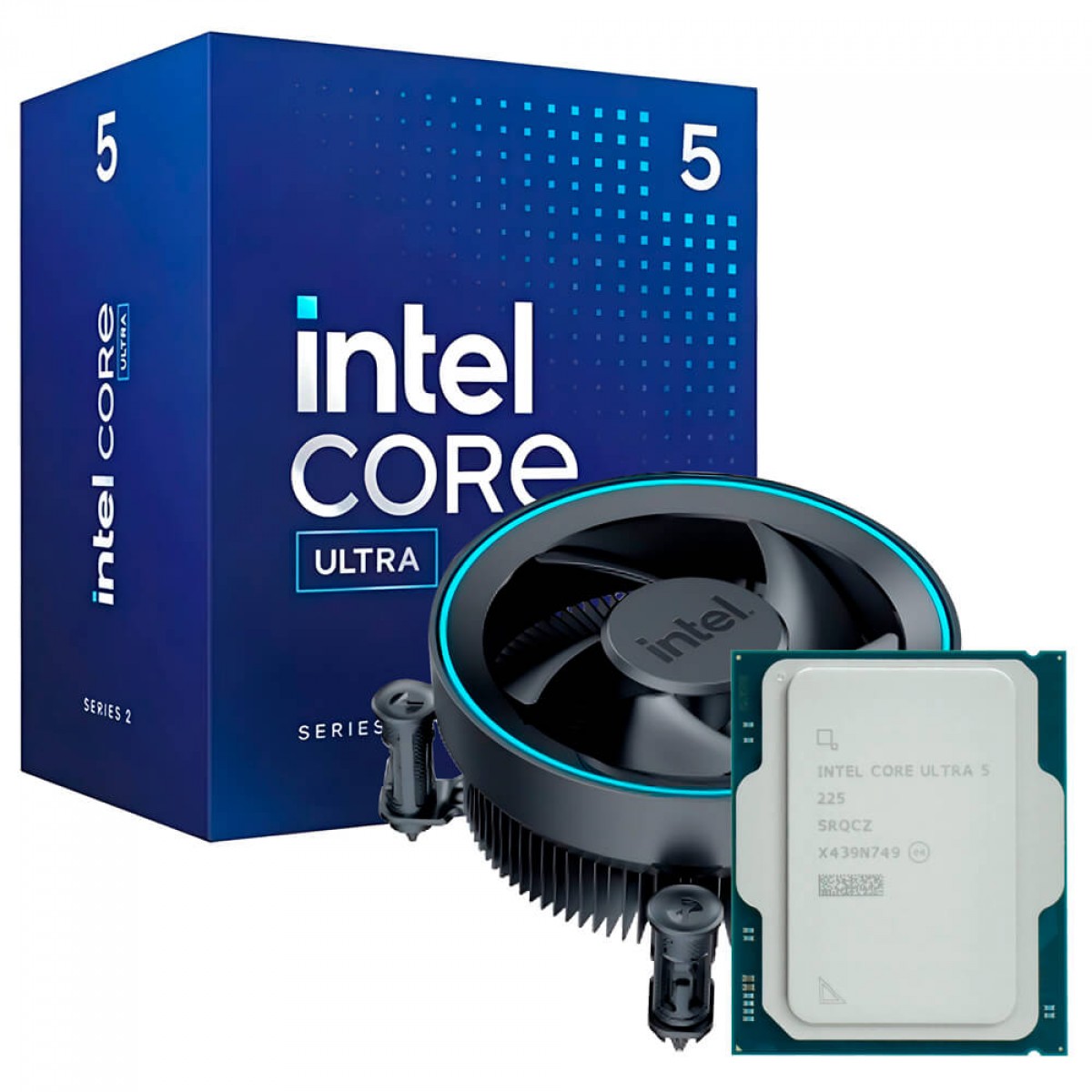

Core Ultra 5 225 10 Cores up to 4.2Ghz 20MB Cache LGA 1851 Socket retail box with Laminar CPU cooler

Intel Part No: MPN: BX80768225

Intel Core Ultra 5 225 10 Core 4.9GHz LGA1851 Processor - Boxed

The latest Intel Core Ultra processors (Series 2) enable you to use the most AI experiences across desktop and mobile-making everything you do easier, faster, and better.

Specifications:

Essentials:

• Product Collection: Intel Core Ultra Processors (Series 2)

• Code Name: Products formerly Arrow Lake

• Vertical Segment: Desktop

• Processor Number: 225

• Overall Peak TOPS (Int8): 23



CPU Specifications:

• Total Cores: 10

• # of Performance-cores: 6

• # of Efficient-cores: 4

• Total Threads: 10

• Max Turbo Frequency: 4.9 GHz

• Performance-core Max Turbo Frequency: 4.9 GHz

• Efficient-core Max Turbo Frequency: 4.4 GHz

• Performance-core Base Frequency: 3.3 GHz

• Efficient-core Base Frequency: 2.7 GHz

• Cache: 20 MB Intel Smart Cache

• Total L2 Cache: 22 MB

• Processor Base Power: 65 W

• Maximum Turbo Power: 121 W

• Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes

• AI Software Frameworks Supported by CPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

• CPU Lithography: TSMC N3B



Memory Specifications:

• Max Memory Size (dependent on memory type): 256 GB

• Memory Types: Up to DDR5 6400 MT/s

• Maximum Memory Speed: 6400 MHz

• Max # of Memory Channels: 2



GPU Specifications:

• GPU Name: Intel Graphics

• Graphics Base Frequency: 300 MHz

• Graphics Max Dynamic Frequency: 1.8 GHz

• GPU Peak TOPS (Int8): 4

• Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

• Xe-cores: 2

• Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)

• Max Resolution (DP): 8K @ 60Hz

• Max Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz

• DirectX Support: 12

• OpenGL Support: 4.5

• OpenCL Support: 3

• Intel Quick Sync Video: Yes

• # of Displays Supported: 4

• Device ID: 0x7D67

• Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes



NPU Specifications:

• NPU Name: Intel AI Boost

• NPU Peak TOPS (Int8): 13

• Sparsity Support: Yes

• Windows Studio Effects Support: Yes

• AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN



Expansion Options:

• Direct Media Interface (DMI) Revision: 4.0

• Max # of DMI Lanes: 8

• Intel Thunderbolt: Yes

• Scalability: 1S Only

• PCI Express Revision: 5.0 and 4.0

• PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4,1x8+4x4

• Max # of PCI Express Lanes: 24



Package Specifications:

• Sockets Supported: FCLGA1851

• Thermal Solution Specification: PCG 2022C

• Max Operating Temperature: 105°C



Advanced Technologies:

• Intel Volume Management Device (VMD): Yes

• Intel Gaussian & Neural Accelerator: 3.5

• Intel Thread Director: Yes

• Intel Speed Shift Technology: Yes

• Intel Turbo Boost Technology: 2.0

• Intel 64: Yes

• Instruction Set: 64-bit

• Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2

• Idle States: Yes

• Enhanced Intel SpeedStep Technology: Yes

• Thermal Monitoring Technologies: Yes



Security & Reliability:

• Intel Standard Manageability (ISM): Yes

• Intel Control-Flow Enforcement Technology: Yes

• Intel AES New Instructions: Yes

• Secure Key: Yes

• Intel Trusted Execution Technology: Yes

• Execute Disable Bit: Yes

• Intel OS Guard: Yes

• Intel Boot Guard: Yes

• Mode-based Execute Control (MBEC): Yes

• Intel Virtualization Technology (VT-x): Yes

• Intel Virtualization Technology for Directed I/O (VT-d): Yes

• Intel VT-x with Extended Page Tables (EPT): Yes
