Product Code: 100570
Availability: In Stock
Status: Brand New
Warranty: Three Months RTB Warranty
Manufacturer Url: https://support.lenovo.com/nz/en/solutions/pd028010
Price: $138.00 gst Inclusive was $228.85 gst Inclusive $120.00 gst Exclusive

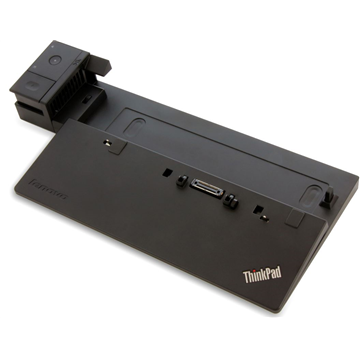

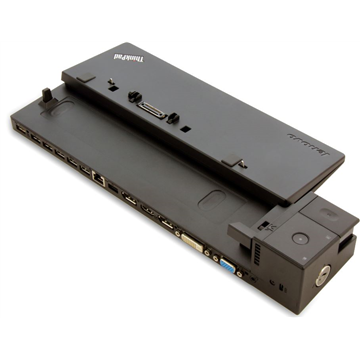

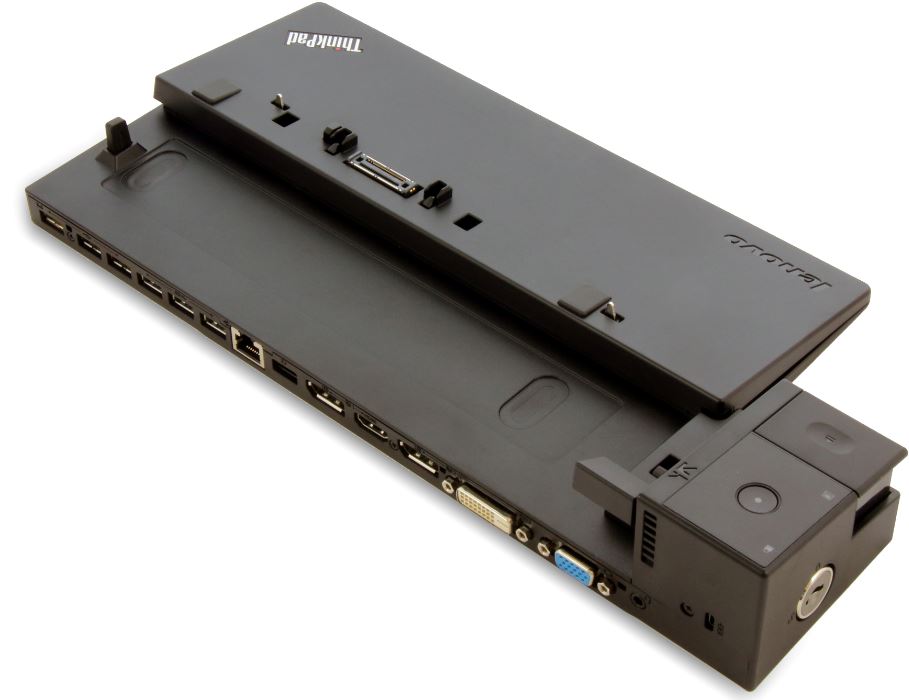

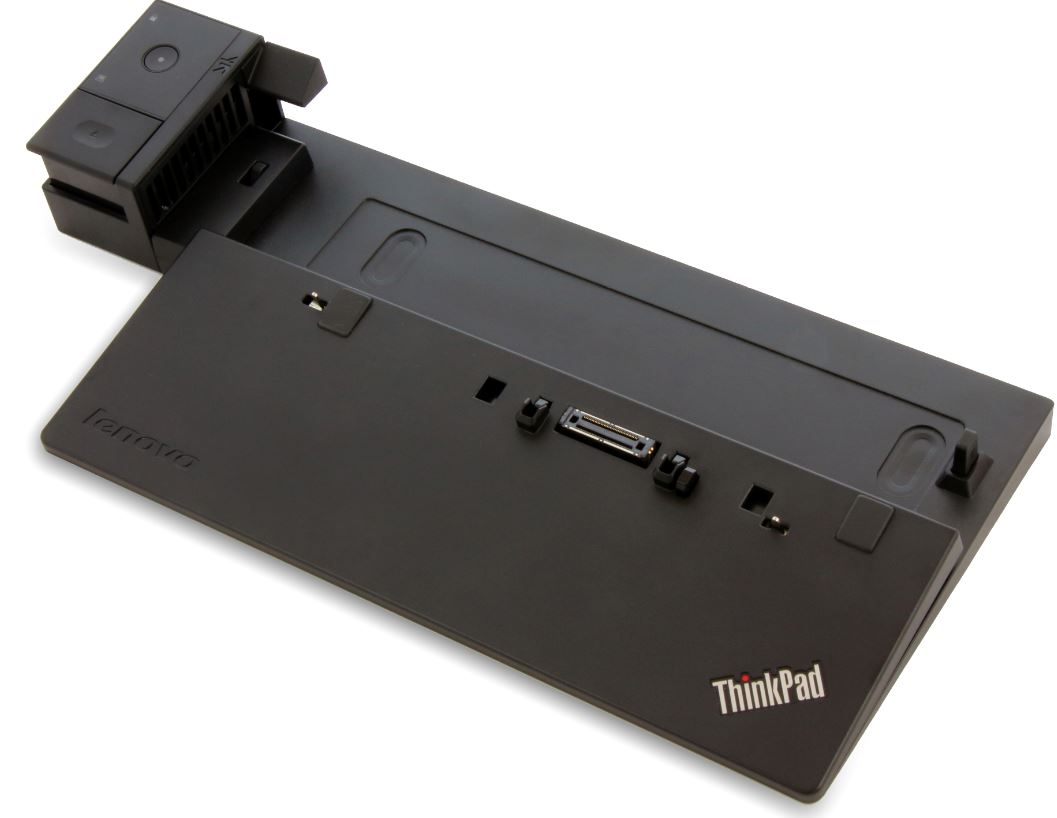

LENOVO THINKPAD ULTRA DOCK - 90W
Brand new Item in sealed box comes with 3 months Warranty Return To Base
| Compatibility | A475, L570, L470, L460, L560, L450, ThinkPad 25, T470p, T470s, T570, T470, T460s, T560, T460, T460p, T550, T450, T450s, P51s, X270, X260, X250 | |

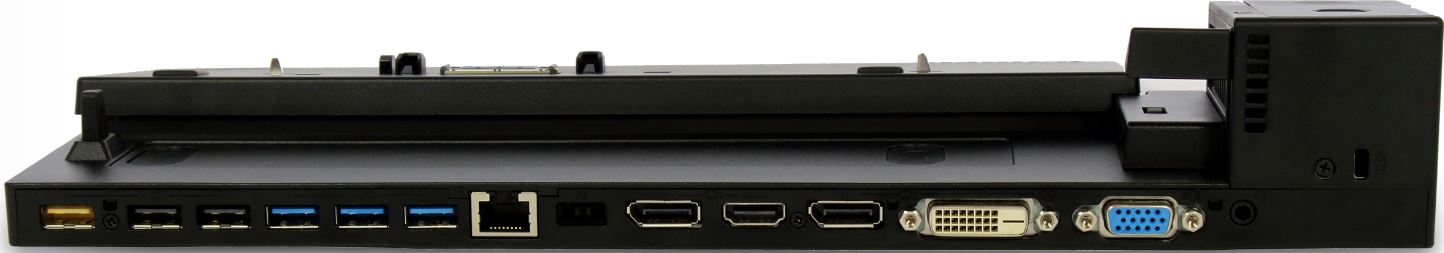

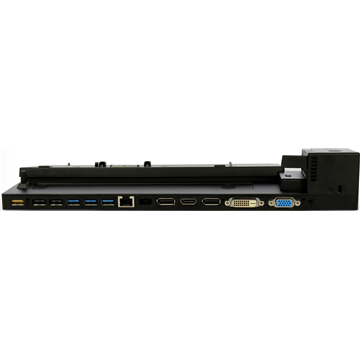

Making mince-meat out of your workload, the completely re-designed and supercharged ThinkPad Ultra Dock with an included ThinkPad 90W AC Adapter grows capability without growing in size. The ultimate docking solution includes a wide range of video outputs, including HDMI 1.4, and support for multiple external monitors so you can multi-task like never before.3x USB 2.0, one supports always-on USB charging
- 3x USB 3.0
- 10/1000 Gigabit Ethernet, supports enterprise manageability
- 2x DisplayPort 1.2
- 1x DVI-D
- 1x HDMI 1.4
- 1x VGA
- Driver-free, perfect video quality
- 1x Stereo/Mic Combo Audio Port
- Charges your ThinkPad with an included ThinkPad 90W AC Adapter
- Physical rear alignment for a perfect dock every time
- Smaller desktop footprint vs. Series 3 docking stations
- Comes with ThinkPad AC adapter (90W)
FEATURES
ThinkPad Ultra Dock - 90W
Making mince-meat out of your workload the completely re-designed and supercharged ThinkPad Ultra Dock with an included ThinkPad 90W AC Adapter grows capability without growing in size. The ultimate docking solution includes a wide range of video outputs including HDMI 1.4 and support for multiple external monitors so you can multi-task like never before.

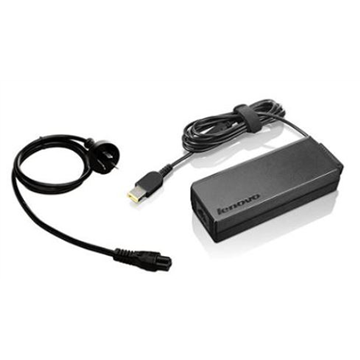

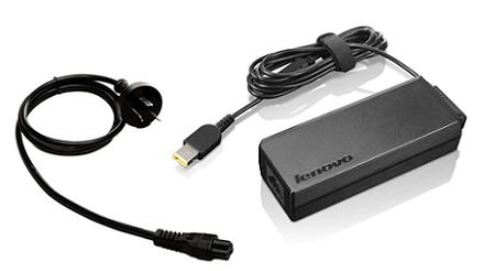

Includes a ThinkPad 90W AC Power Adapter (Slim Tip)
Features
- 1x VGA port
- 1x DVI-D port 2x DisplayPort 1x HDMI port (only 2 can be active)
- 3x USB 2.0 ports one port supports always-on USB charging
- 3x USB 3.0 port
- 10/1000 Gigabit Ethernet port
- Notebook Lock and Security Lock Slot
SPECS
Display & graphics
- Display depth162.5 mm
- Display height55.6 mm
- Display width345 mm
- DisplayPortYes
Exterior & appearance
- USB 2.0 ports3
- USB 3.0 ports3
- USB ports6
Other
- BrandLenovo
- Product lineUltra Dock
- Product nameThe ThinkPad Ultra Dock
- Product typeDocking Station
- VendorLenovo Group Limited
- Vendor code 40A20090AU
Brand new Lenovo Thinkpad 40A20090AU 90W Ultra Dock, it comes with an included ThinkPad 90W AC Adapter and grows your capability without having grown in size. The ultimate 90W docking solution, the ThinkPad Ultra Dock includes a wide range of video outputs, including HDMI 1.4 and support for multiple external monitors, so you can multi-task like never before. Note: ThinkPad Ultra dock is capable to support up to 4k2k(3840x2160) at 60Hz via either 1 of 2 DP ports or support dual 4k2k at 30Hz via 2 DP port
comes with an included ThinkPad 90W AC Adapter and grows your capability without having grown in size. The ultimate 90W docking solution, the ThinkPad Ultra Dock includes a wide range of video outputs, including HDMI 1.4 and support for multiple external monitors, so you can multi-task like never before. Note: ThinkPad Ultra dock is capable to support up to 4k2k(3840x2160) at 60Hz via either 1 of 2 DP ports or support dual 4k2k at 30Hz via 2 DP ports.
Actual video output on the dock is based on system video performance since the video signal is passing through from system to the Ultra Dock. Some of the video ports do have exclusive use and are also dependent on the docked ThinkPad configuration. Box includes The ThinkPad Ultra dock, two security keys, ThinkPad 90W AC adapter, power cord and publications.
Lenovo ThinkPad Ultra Dock – 90W – 40A20090AU
Features
Making mince-meat out of your workload, the completely re-designed and supercharged ThinkPad Ultra Dock with an included ThinkPad 90W AC Adapter grows capability without growing in size. The ultimate docking solution includes a wide range of video outputs, including HDMI 1.4, and support for multiple external monitors so you can multi-task like never before.3x USB 2.0, one supports always-on USB charging 3x USB 3.0 10/1000 Gigabit Ethernet, supports enterprise manageability 2x DisplayPort 1.2 1x DVI-D 1x HDMI 1.4 1x VGA Driver-free, perfect video quality 1x Stereo/Mic Combo Audio Port Charges your ThinkPad with an included ThinkPad 90W AC Adapter Physical rear alignment for a perfect dock.
Specifications
| Docks | Ultra – Dock 90W | |
| 40A20090AU | ||
| USB Ports | ||
| USB-C Thunderbolt Always-On | N/A | |
| USB 3.0 | SuperSpeed USB 3.0 with Always-On Mobile Device Charging | N/A |
| SuperSpeed USB 3.0 – 9 pin USB Type A | N/A | |
| SuperSpeed USB 3.0 – 4 pin USB Type B | 3x USB 3.0 | |
| USB 2.0 | USB 2.0, always-on | 3x USB 2.0, one supports always-on USB charging |
| USB 2.0 – 4 pin USB Type A | N/A | |
| Ethernet Port | ||
| Ethernet Port | 1 x network – 10Base-T/100Base-TX/1000Base-T – RJ-45 | |
| Video/Audio Ports | ||
| Display port | 2x DisplayPort 1.2 | |
| HDMI | 1x HDMI 1.4, audio / video – HDMI – 19 pin HDMI Type A | |
| DVI | DVI-D Dual Link, Dig/ana, 24 + 5 Pins | N/A |
| DVI-D Dual Link, Digital, 24 + 1 Pins | 1 x display / video – DVI-Digital – 24 pin digital DVI | |
| VGA | 1 x display / video – VGA – 15 pin HD D-Sub (HD-15) | |
| Audio Jack 3.5mm | 1 x audio – headphones/microphone – mini-phone stereo 3.5 mm | |
| Accessories | ||
| Power outlet | 90W AC Adapter | |
| Security | Driver-free, perfect video quality | |
| Security Lock conveniently secures both your notebook and dock to your desk with a single key | ||
| Design | Smaller desktop footprint vs. Series 3 docking stations | |
| Includes | ||
| Warranty | Limited warranty – 3 years | |
| Compatibility | A475, L570, L470, L460, L560, L450, ThinkPad 25, T470p, T470s, T570, T470, T460s, T560, T460, T460p, T550, T450, T450s, P51s, X270, X260, X250 | |
Maximum Resolution/ Refresh Rate Support
The following matrix shows the video capability of ThinkPad Ultra dock is able to achieve. Actual video output on the dock is based on system video performance since the video signal is passing through from system to the Ultra dock.
| Bank 1 DisplayPort -1 |
Bank 1 HDMI |
Bank 2 DisplayPort -2 |
Bank 2 DVI-D |
Bank 3 VGA |
|
| 1 Display | 3840 x 2160 @60Hz | ||||
| 3840 x 2160 @30Hz | |||||
| 3840 x 2160 @60Hz | |||||
| 1920 x 1200 @60Hz | |||||
| 1920 x 1200 @60Hz | |||||
| 2 Displays | 3840 x 2160 @30Hz | 3840 x 2160 @30Hz | |||
| 3840 x 2160 @60Hz | 1920 x 1200 @60Hz | ||||
| 3840 x 2160 @60Hz | 1920 x 1200 @60Hz | ||||
| 3840 x 2160 @30Hz | 3840 x 2160 @30Hz | ||||
| 3840 x 2160 @30Hz | 1920 x 1200 @60Hz | ||||
| 3840 x 2160 @30Hz | 1920 x 1200 @60Hz | ||||
| 3840 x 2160 @60Hz | 1920 x 1200 @60Hz | ||||
| 1920 x 1200 @60Hz | 1920 x 1200 @60Hz | ||||
| 3 Displays | 3840 x 2160 @30Hz | 3840 x 2160 @30Hz | 1024 x 768 @60Hz | ||
| 1920 x 1200 @60Hz | 1920 x 1200 @60Hz | 1920 x 1200 @60Hz | |||
| 3840 x 2160 @30Hz | 3840 x 2160 @30Hz | 1024 x 768 @60Hz | |||
| 1920 x 1200 @60Hz | 1920 x 1200 @60Hz | 1920 x 1200 @60Hz |
